Project Summary
The apartment was designed for 8 rental housing units arranged across 3 floors on a plot of 0.089 Acre (362.269 Sq M). All 8 units are 2BHK but across 3 distinct typologies, responding to the constraints of the site while maximising usable area.
The ground floor consists of two housing units and car parking for three four-wheelers. The first and second floors each accommodate 3 housing units. This is a residential apartment on a small plot, designed as affordable housing.
Visualizations
Social Space
View from Staircase
Staircase Landing

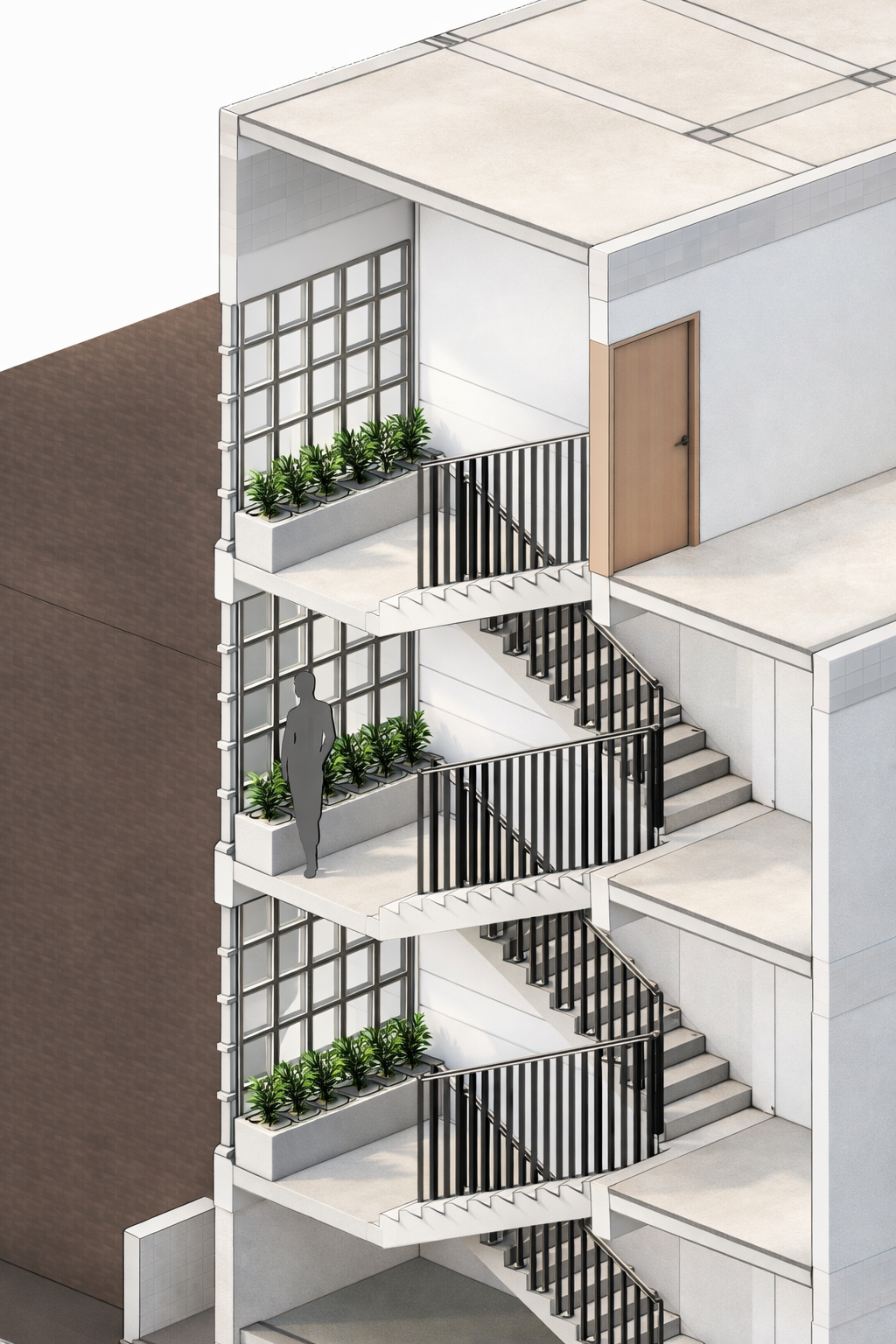

Vertical Circulation

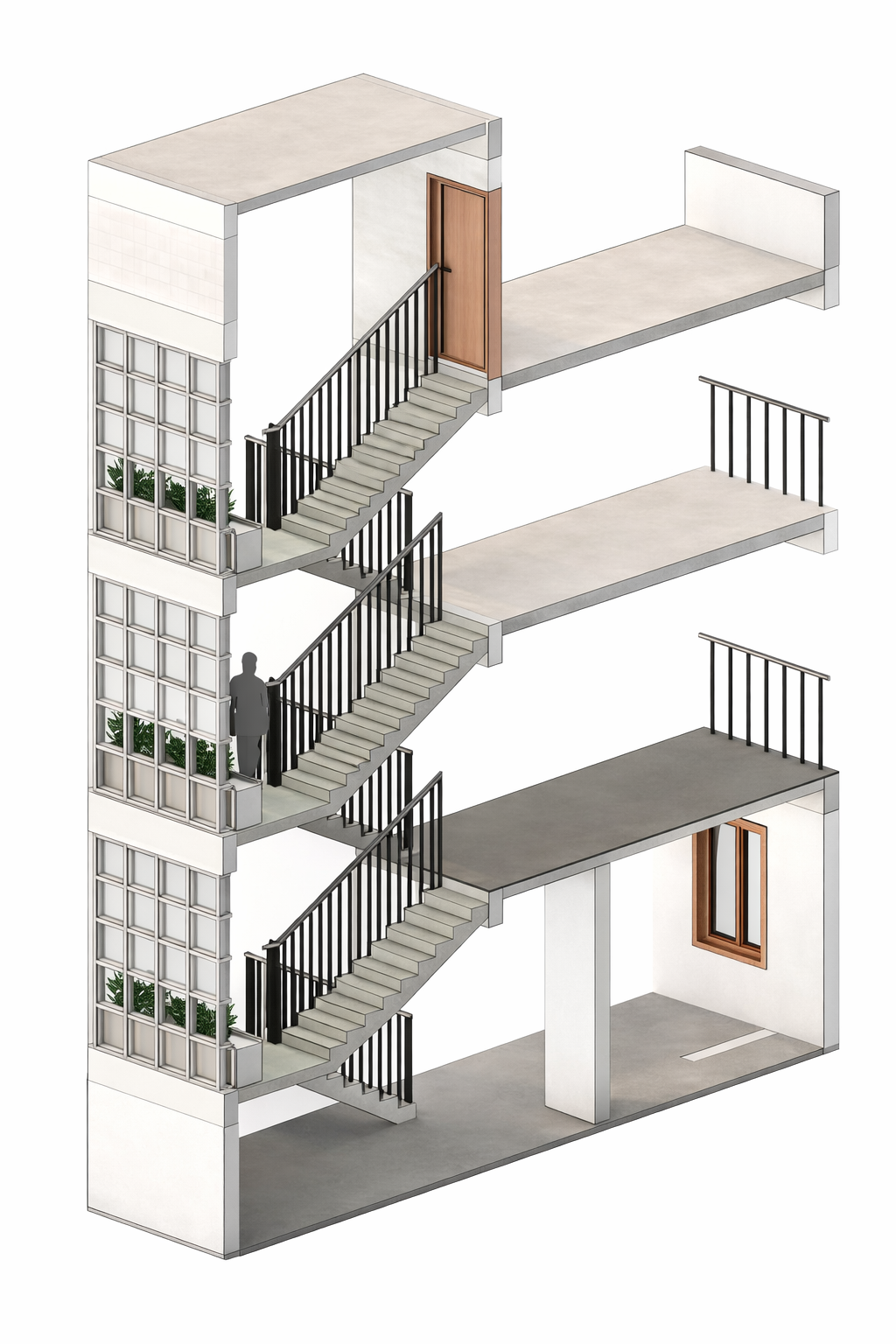

Central Core Space
Concept & Design
Central Core Social Space
Concept — Central Core Social Space
Form Development & Structural Evolution
Residential Unit Typology
3 unit types, all 2BHK, totalling 8 units:
Type A
650 Sq Ft
60.37 Sq M · 3 Units
Type B
591 Sq Ft
54.97 Sq M · 3 Units
Type C
687 Sq Ft
63.84 Sq M · 2 Units
Residential Unit Distribution & Unit Types
Drawings
Exploded Diagram — Floor Organisation
Floor Plan — Ground Floor
Floor Plan — First & Second Floor
Structural System — Wall & Floor
AAC Wall Panels — AAC (Autoclaved Aerated Cement) panels of 3000 × 600 mm with a thickness of 75 mm are used for the partition walls. Their moisture resistance makes them suitable for use in bathrooms and kitchens as well.
